UWB Anchors for Indoor Location Tracking

In a real-time location system (RTLS), anchors are electronic devices that detect UWB pulses emitted by UWB Tags and forward them to the location server for calculating tag positions. To cover the area with an indoor tracking system, a set of anchors needs to be installed above the area to create the location infrastructure.

As different buildings and halls bring different anchor requirements, Sewio has developed two different anchors to allow customers to choose the right anchor combination to meet their needs and budget. The affordability of UWB anchors means that the cost of UWB location projects are now comparable to RFID, Wi-Fi or BLE, yet providing unmatched accuracy, reliability and scalability.

For midsize organizations to enterprises that are struggling to increase their efficiency, Sewio RTLS anchors provide a real-time tracking and identification solution. Unlike traditional indoor tracking technologies, only Sewio brings high accuracy and coverage, allowing the combination of directional and omnidirectional anchors to ensure the best performance and ROI within a single installation.

The system is fully scalable, allowing unlimited expansion of the tracking area just by adding extra anchors to the network. And the TDoA methodology enables the tracking of an unlimited number of tags within the system and thousands of them within a single area for tracking assets, monitoring forklifts or employee location tracking.

UWB Anchors

Key Features of UWB Anchors

Long Range

Sewio anchors have a long RTLS range with great line of sight

Long Range
Industry Proven Accuracy

High Accuracy

Along with Sewio Tags, anchors provide excellent real-time location accuracy of 30 cm (1 feet)

Superior Scalability

Sewio RTLS operates on TDoA methodology–allowing unlimited tags (= tracked entities) within the system and up to thousands of tags within one area

Superior Scalability
Powerful Synchronization

Powerful Synchronization

Robust anchor synchronization resistant to the influence of the surrounding environment with zero warmup, allowing single location set-up in one day

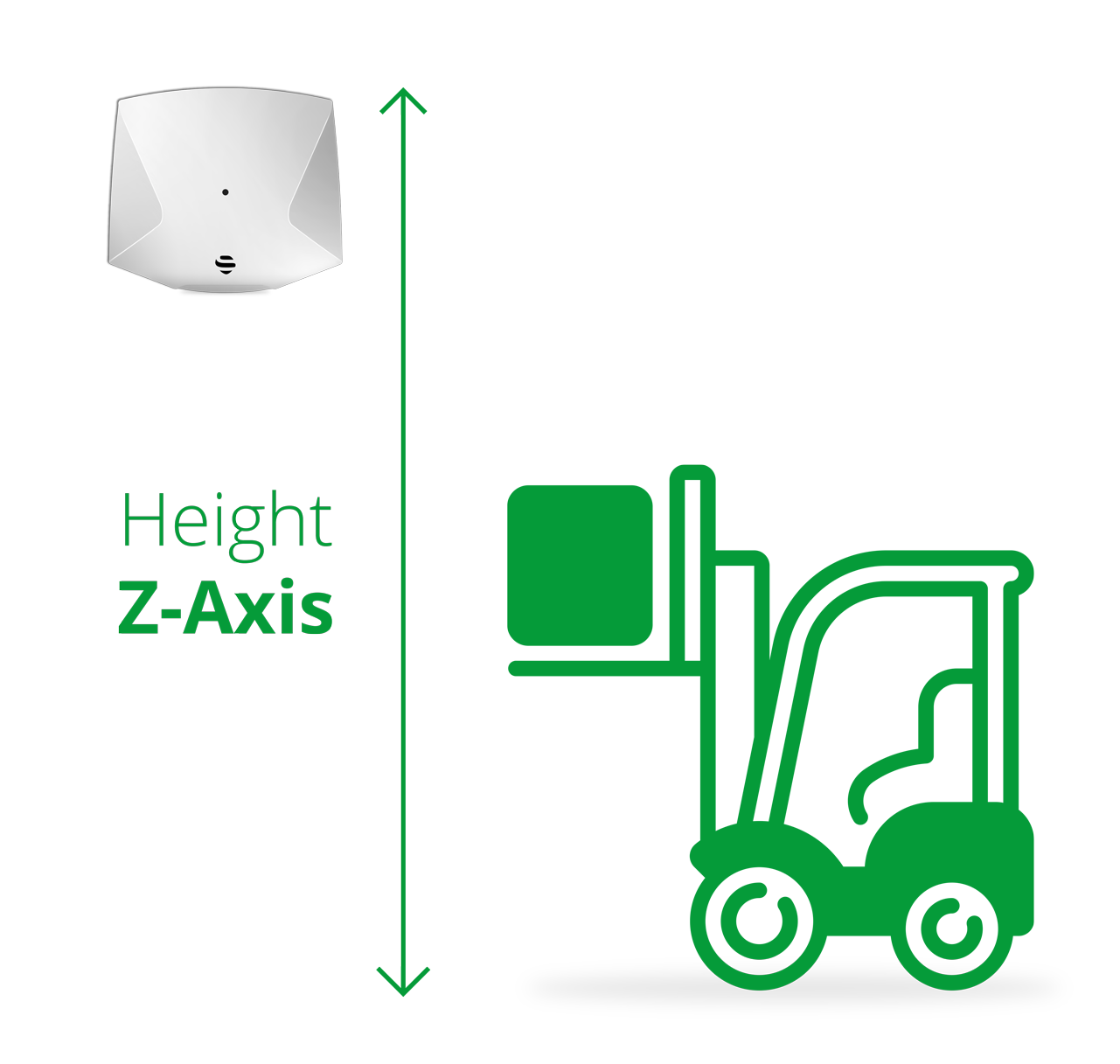

Native Barometer

Built-in barometer for detecting the Z-axis (currently in beta version)

Native Barometer
Harsh Conditions Resistant

Harsh Conditions Resistant

An industry ready enclosure resistant to dust, providing long-term reliability

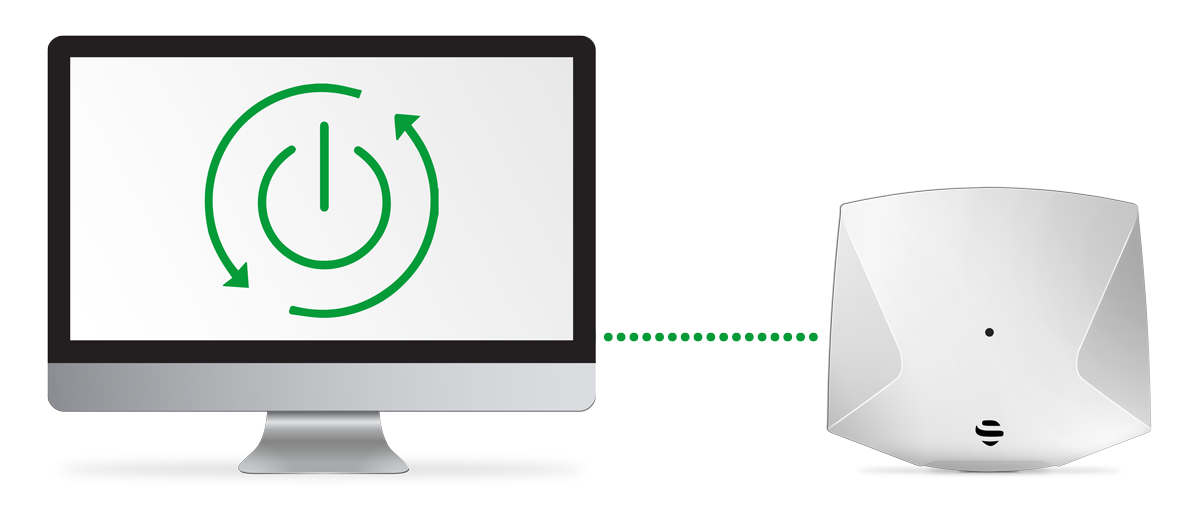

Remote Power Management

Active PoE enables a continuous power integrity health-check. In case of an outage or system shutdown, it enables the performance of a power restart procedure remotely, which can be crucial since anchors are not usually easily reachable

Remote Power Management

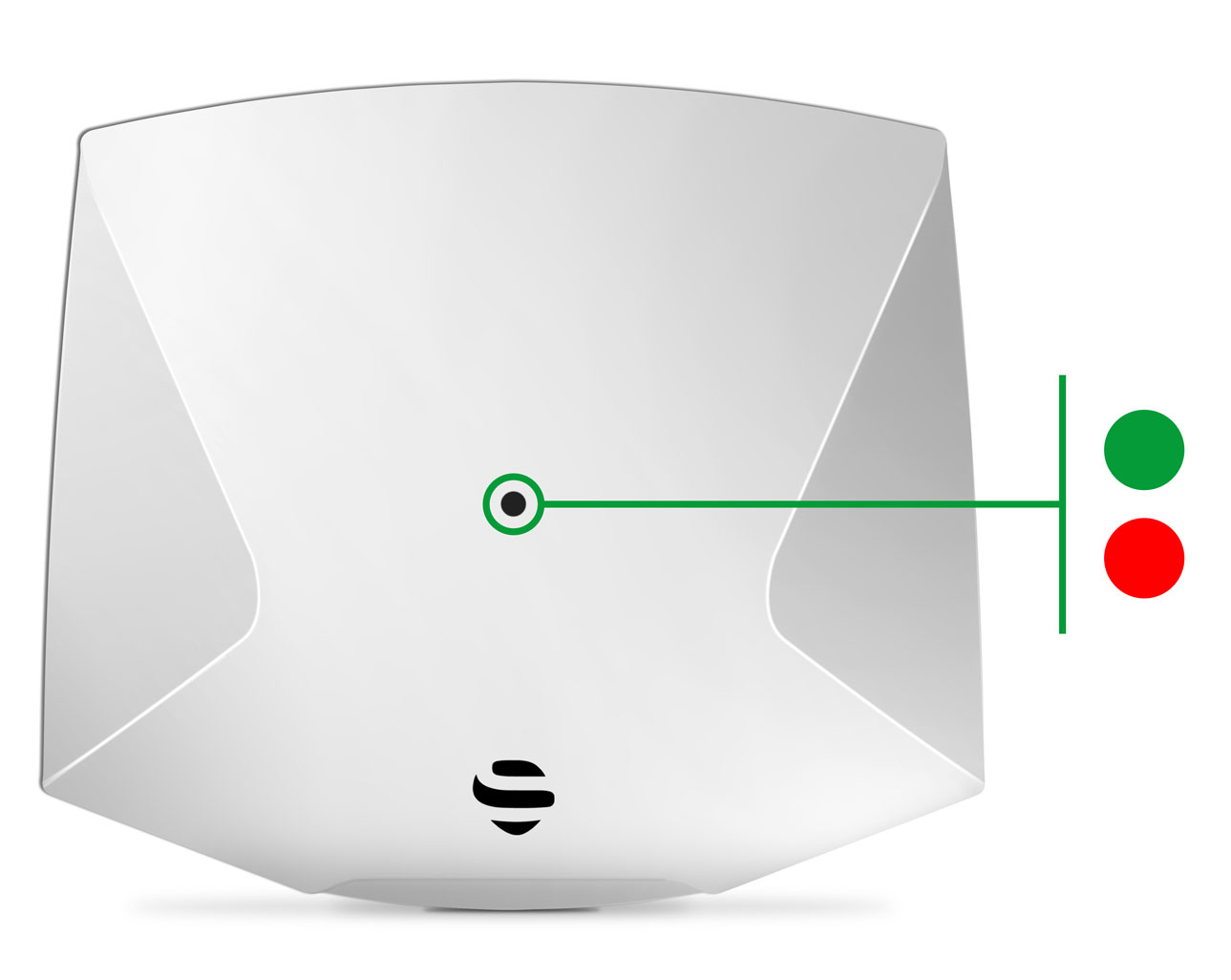

Easy Maintenance

Easy Maintenance

Each anchor is equipped with an LED status for easy identification and maintenance

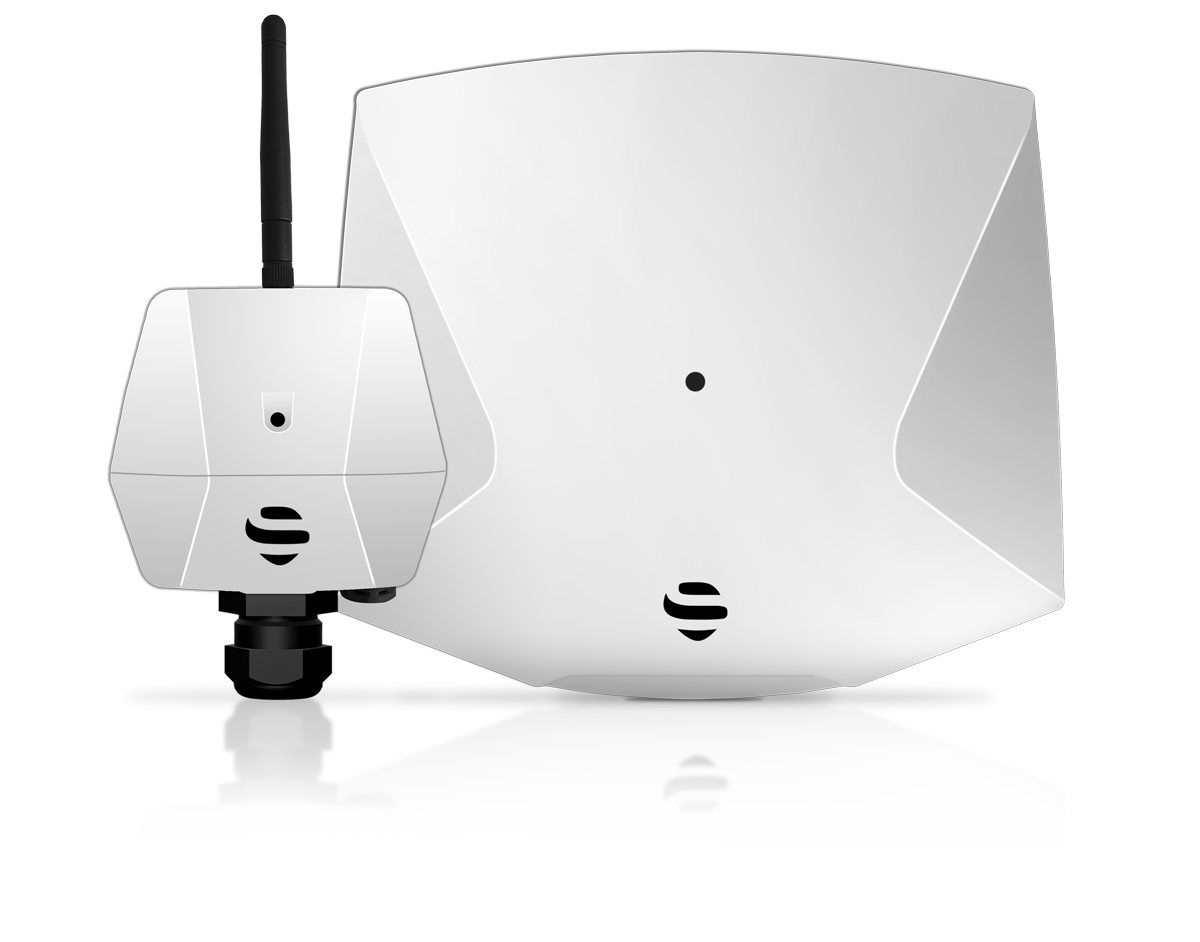

Sewio UWB Anchor Types

UWB Anchor Types

Vista Omni: A true 360° omnirange UWB anchor
Vista DirectFive: A high-performance directional UWB anchor

Sewio UWB Anchors Feature Matrix

UWB Anchors Parameters

*Anchor is able to provide True Location after warmup period
**available through PoE Power bank, see accessories.

Features Explained

Warmup period: The time needed to start the system fully.
Passive/Active PoE: Passive PoE always sends an electric current out over the Ethernet cable at a certain voltage regardless of the device it’s going to, while Active PoE negotiates the correct voltage between the switch and the PoE-powered device.
Ethernet/Wi-Fi Backhaul: Technology that is used for anchor synchronization – either Ethernet or Wi-Fi.
Barometer: A barometer delivers a precise atmospheric pressure measurement that is used for detecting the height of the tag (Z-axis).

Sewio UWB Anchors

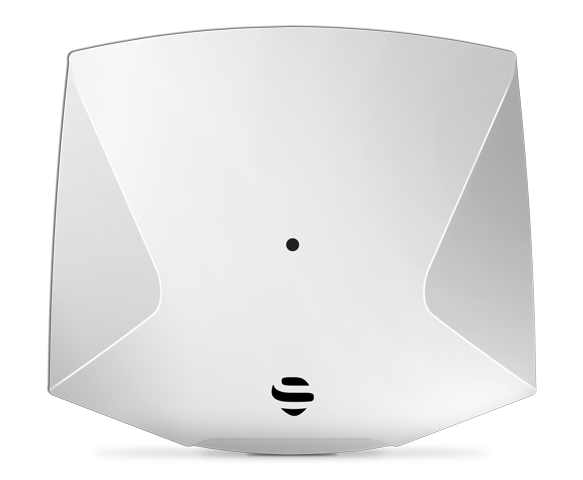

Anchor Vista DirectFive

This high-performance directional UWB antenna provides long range and strong consistent coverage. Its uniform radiation pattern minimizes the possibility of “blind” spots in the location area. The anchor is industry ready as it uses Active PoE and robust housing to meet safety standards, and its robust synchronization ensures proven reliability in harsh environmental conditions. The Anchor Vista DirectFive makes a great fit when combined with Anchor Vista Omni within one system.

  • A powerful directional UWB antenna

  • Active PoE 802.3af, reducing cabling and allowing remote power management

  • Industrial proven enclosure

  • Zero warmup time for fast commissioning

  • Robust synchronization for stable positioning in harsh conditions

  • Built-in barometer to measure the Z-axis

Anchor Vista DirectFive Factsheet
Anchor Vista DirectFive

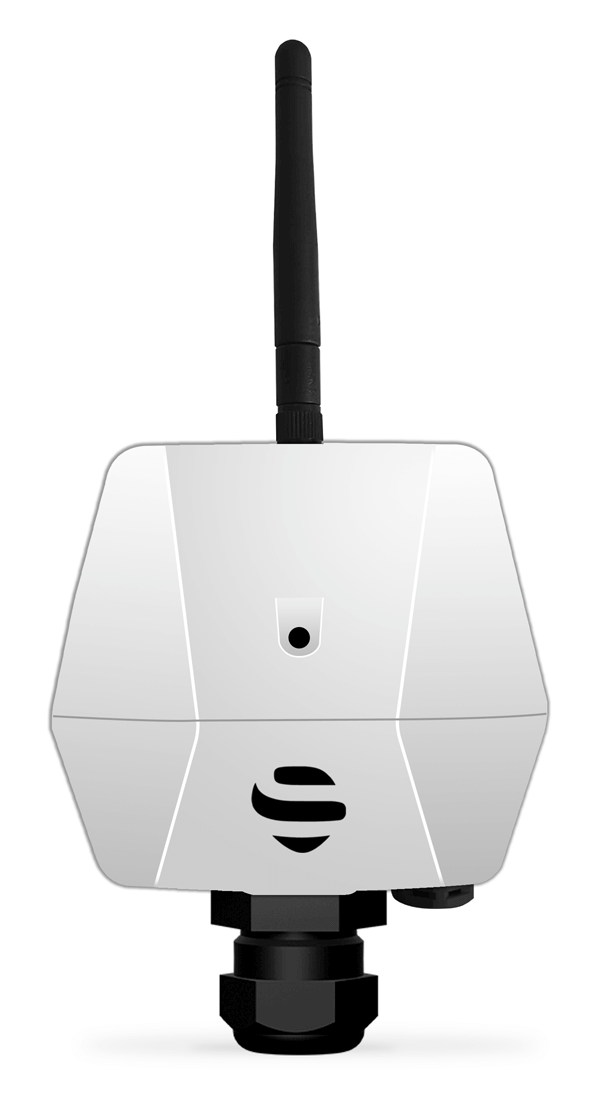

Anchor Vista Omni

This high-performance omnidirectional UWB antenna provides a uniform omnidirectional pattern resulting in an equal true 360° range. There is no need for device orientation adjustments, which is crucial, especially once the anchor is deployed and becomes physically unreachable. The anchor is industry ready, it uses Active PoE  to meet safety standards and its robust synchronization ensures proven reliability in harsh environmental conditions. The Anchor Vista Omni makes a great fit when combined with Anchor Vista DirectFive within one system.

  • A powerful true 360° omnirange UWB antenna

  • Active PoE 802.3af, reducing cabling and allowing remote power management

  • Compact design

  • Zero warmup time for fast commissioning

  • Robust synchronization for stable positioning in harsh conditions

  • Built-in barometer to measure the Z-axis

Anchor Vista Omni Factsheet
Anchor Vista Omni

For previous versions of anchors, please see legacy UWB anchors.
