SEWIO RTLS PLATFORM

Proved by real industrial markets

It is everything all about your project. To win it, we help you by delivering highly reliable UWB indoor positioning technology, which can be quickly demonstrated in customer premises and subsequently easily scaled into the large complex industrial environment.

Success is not only about precision. In order to guarantee best performance to your customer, our RTLS platform integrates complex UWB system management tools. Check positioning precision in real-time, record capture files for further analyses, change device configuration remotely or get system reports periodically. All these functions guarantee your success.

LEARN MORE ABOUT UWB TECHNOLOGY

Scheme-v4

HOW THE PLATFORM WORKS?

To locate objects the RTLS Platform uses a set of hardware devices collecting UWB signals and transmitting them to the RTLS server, where the position is calculated by the location engine.

The RTLS Platform consists of Tags, Anchors and RTLS Studio SW. Anchors are installed at the ceiling in the area. Mobile Tags in regular interval transmit very short UWB signal, which is received by the ambient Anchors. The Anchors send the timestamps from the UWB signals via Ethernet or WiFi infrastructure to the RTLS server running RTLS Studio SW, which calculate the exact position and store data in the database. Positioning data are then available through the API. RTLS Studio SW also allows to visualize the real-time tracking and to analyze the stored data.

Key benefits choosing Sewio RTLS Platform for your project is outstanding system management, easy scalability and high precision.

Icons-Platform-scaled-v9

SYSTEM FACTSHEET
TDOA INTRO

RTLS PLATFORM FOR DEVELOPERS

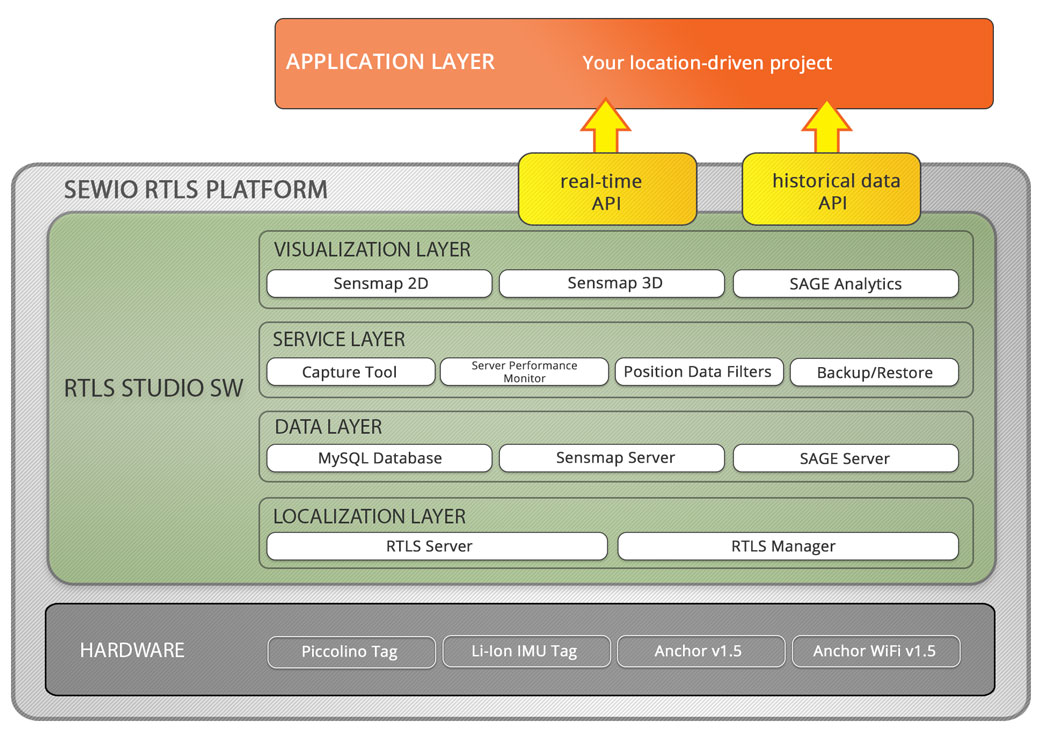

Main functional blocks of RTLS Platform are defined by corresponding platform layers. Data transmitted as UWB signal is obviously generated at Hardware Layer. UWB signal from Hardware layer is processed by Location Layer where position is calculated and filtered. Data Layer is responsible for location data storage and their representation for further visualization and analyses. At Service Layer the RTLS Platform offers tools to control and optimize the system performance. The real-time position data and analytics data is visualized in Visualization Layer. RTLS Platform can be connected to your application through the API with REST, Websocket or UDP stream interfaces.

INTERACTIVE MODEL

Click at corresponding layer to get more info

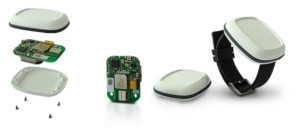

Piccolino Tag

Piccolino Tag is one of the smallest UWB Tag on the market. Tag is powered from a coin battery with battery life about 1 year. It integrates accelerometer to ensure long battery life. It is applied mostly for tracking pallets, tools, visitors or shopping trolleys.

PRODUCT PAGE

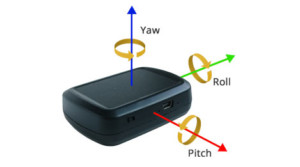

Li-Ion IMU Tag

Tag with integrated Decawave DWM1000 module powered by Li-ion 600 mAh battery. The Tag is equipped with inertial sensors, mini-USB interface for powering and configuration, power button, LEDs.

PRODUCT PAGE

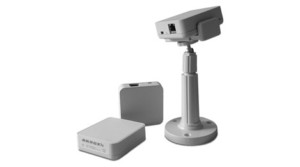

Anchor v1.5

Anchor with omnidirectional ceramic antenna, Ethernet interface and web-based interface for remote configuration. Equipped with status and identification LED. Works in TDoA mode.

PRODUCT PAGE

Anchor WiFi v1.5

Anchor with omnidirectional ceramic antenna, 2,4 GHz WiFi interface and web-based interface for remote configuration. Equipped with status and identification LED. Works in TDoA mode.

Localization Layer

RTLS Server engine processes all the timestamps from incoming UWB signals and in accordance with the configuration of RTLS Manager calculates the exact position of Tags. Through the RTLS Manager the corresponding parameters affecting position calculation can be set. Furthermore it is used to manage the entire UWB and IP network.

RTLS MANAGER DEMO

Data Layer

Location data including ID, Position, Battery status, etc. are stored in My SQL database. Sensmap Server controls access to variable parameters of installation such like buildings, plans and position of anchors. Sage Server accessing historical data such like time spent in zone, heatmaps and many others.

Service layer

Service Layer guarantees high service availability and system performance. Capture Tool allows Sewio Support team to explore recorded data and give you highly sophisticated response. Server Performance Monitor control the performance of all the internal processes and server components to report you any suspect variations. Backup or restore of system settings is obvious feature guarantying you do not lose your work.

Visualization Layer

You need Sensmap tool to upload maps, set the coordinates or deploy Anchors at correct positions. Furthermore it is presentation tool, which you can use to present performance of your solution in real-time. If you need version with 3D model of facility, go with Sensmap 3D. Power of location data is revealed once the strong analytics tool is involved. Use Sage RTLS Analytics tool to show your customer how much analyses you can offer him.

SENSMAP DEMO

SAGE ANALYTICS DEMO

Real-Time API, Sensmap Server

To get location data into your application in real-time, you are provided with Websocket interface. If your application requires latency < 100 ms you can integrate directly UDP stream.

API WEBSOCKETS

Historical API, Sensmap Server, SAGE Server

If your solution requires to get data just on demand you can use well-known REST interface. In link down below you can try our interactive demo with all the REST API commands.

API REST

ANCHOR ROUTER CUBE

A basic hardware component of the location platform

The Anchor is static device receiving UWB signals from Tags.  A set of Anchors create the location infrastructure in facility. The RTLS Platform is fully scalable, allowing the unlimited expansion of area just by adding extra Anchors to the network. You can use just 5 Anchors for demonstration and after to add any number to scale into space.

Anchor features:

  • HTTP interface for configuration and control
  • Configuration done remotely via RTLS Manager
  • High number of configuration parameters (RF profiles, IP parameters, etc)

Anchors_scen_platform-compress

VISIT PRODUCT PAGE

Software_Server-v5-compress

SOFTWARE

RTLS Studio SW is all-in-one software package enabling smooth installation, deployment, maintenance, and control of the system. RTLS Studio SW comes as virtual image or it can run as stand-alone Unix application. There is no more toolboxes or Add-ons you need. All you need is prepared as one box.

RTLS Studio Software features:

  • RTLS Manager for settings and system control
  • MySQL database
  • Sensmap 2D/3D for real-time visualization
  • SAGE Analytics for data analysis
  • Capture tool allows the ex-post in-depth data analysis
  • Easy data integration through Websockets or REST API

VISIT PRODUCT PAGE
TRY DEMO

RTLS TDOA KIT

START TO LOCATE REAL-TIME NOW WITH RTLS TDOA KIT

Most of the IoT projects starts with the proof of technology/concept or small pilot project. To simplify and accelerate your success, you can easily start with plug&play RTLS TDoA Kit. Demonstration or testing thus can be done almost immediately. If you want to extend area, just add more Anchors, it is simple.

  • Delivery in 2 weeks
  • Package Content
  • 5 anchors reliably covering 400 m²
  • 3 Li-ion  Tags (rechargeable Asset Tag)
  • 1 Piccolino Tag (tiny personal Tag)
  • RTLS Studio SW – Full License
  • SAGE Analytics – Full License
  • All plug-and-play accessories

RTLS TDoA Kit

GO TO STORE
